Technicota LAB
Laboratory Tablet Coating Machine :

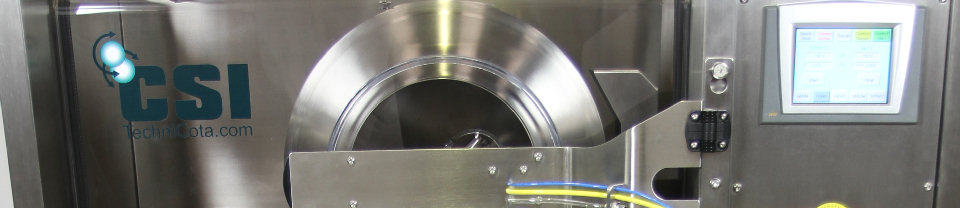

The Coating Systems Technicota LAB has been designed and developed to meet the requirements of our customers, who want the flexibility of coating small quantities of tablets. The Technicota LAB is designed to be self-contained requiring only power and compressed air the Technicota LAB utilizes many technological advances to achieve this standalone operation.
o Wurster Column conversion
o All fans are inverter controlled.
o The body is all stainless steel double skinned construction
o The system uses a 5.7 inch colour touch screen display to control all parameters.
o The unit also incorporates modern design with heat recovery from all available heat sources reducing energy requirements and exhaust air temperature.
TECHNICOTA LAB SPECIFICATION |
||
Dimensions (Width x Depth x Height) |
m |
1.2 x 0.6 x 1.6 |
Spray Nozzle |
Air Atomised |
CSI MkIII |
Filtration Inlet and Exhaust |
F8 & HEPA |
|
Electrical requirements (3 phase) |
kW |
6 |
|
Volt |
400 |
Drum Speed |
rpm |
4 to 24 |
Compressed Air Pressure (Supply) |
bar |
5.0 |
Interchangeable Drum Size(Standard) |
mm (inch) |
432 (17) |
Weight |
Kg |
395 |
Control (Colour touch screen) |
inch |
5.7 |
Material Construction Product Contact (Non Contact) |
Stainless |
316 (304) |
Batch Size Drum (Wurster Column) |
Kg |
4 (0.4) |
